CAS Number | 76-05-1 |
---|---|
Molecular Formula | C2HF3O2 |
Molecular Weight | 114.023 |
InChI Key | DTQVDTLACAAQTR-UHFFFAOYSA-N |
LogP | 0.766 |
Synonyms |
|
Separation type: Bridge Ion Separation Technology, or BIST™ | ||||||||||||||
High Performance Liquid Chromatography (HPLC) Method for Analysis of Inorganic anions, Chloride, Bromide, Nitrate, Iodide, Perchlorate
Using SIELC’s newly introduced BIST™ method, a mixture of many different inorganic anions can be separated on a negatively-charged, cation-exchange BIST™ A column, contrary to conventional chromatographic wisdom. There are two keys to this retention method: 1) a multi-charged, positive buffer, such as N,N,N’,N’-Tetramethyl-1,3-propanediamine (TMDAP), which acts as a bridge, linking the negatively-charged anion analytes to the negatively-charged column surface and 2) a mobile phase consisting mostly of organic solvent (such as MeCN) to minimize the formation of a solvation layer around the charged analytes. Other positively-charged buffers that can generate BIST™ include Calcium acetate and Magnesium acetate. Using this new and unique analysis method, these anions can be separated, retained, and detected through ELSD. This method is also compatible with Mass Spectrometry. |
||||||||||||||
|
SIELC Technologies’ BIST™ Columns are a new and simple way to achieve many separations that are traditionally difficult or impossible to achieve with any other HPLC columns currently on the market! When used with our BIST™ mobile phases, these ion exchange columns can generate very strong retention of analytes that have the same charge polarity as the stationary phase, unlocking new chromatography applications that were previously too difficult to achieve.
Select optionsSIELC Technologies’ BIST™ Columns are a new and simple way to achieve many separations that are traditionally difficult or impossible to achieve with any other HPLC columns currently on the market! When used with our BIST™ mobile phases, these ion exchange columns can generate very strong retention of analytes that have the same charge polarity as the stationary phase, unlocking new chromatography applications that were previously too difficult to achieve.
Select options
Separation type: Bridge Ion Separation Technology, or BIST™ | ||||||||||||||
High Performance Liquid Chromatography (HPLC) Method for Analysis of Fluoroacetic acid, Difluoroacetic acid and Trifluoroacetic acid | ||||||||||||||
|
SIELC Technologies’ BIST™ Columns are a new and simple way to achieve many separations that are traditionally difficult or impossible to achieve with any other HPLC columns currently on the market! When used with our BIST™ mobile phases, these ion exchange columns can generate very strong retention of analytes that have the same charge polarity as the stationary phase, unlocking new chromatography applications that were previously too difficult to achieve.
Select options
Acetic acid and its substitution derivatives, chloroacetic acid, dichloroacetic acid, trichloroacetic acid, difluoroacetic acid and trifluoroacetic acid, are heavily used as building blocks for more complex compounds in organic synthesis. All six acids can be isocratically separated in HPLC using Newcrom BH mixed-mode column with acetonitrile (ACN) and water mobile phase with sulfuric acid (H2SO4) as buffer and UV detected at 200nm.
Column | Newcrom BH, 4.6×150 mm, 5 µm, 100A |
Mobile Phase | MeCN/H2O – 50/50% |
Buffer | H2SO4 – 0.2% |
Flow Rate | 1.0 ml/min |
Detection | UV 200nm |
Class of Compounds | Acid |
Analyzing Compounds | Acetic acid, Chloroacetic acid, Dichloroacetic acid, Trifluoroacetic acid (TFA), Trichloroacetic acid |
The Newcrom columns are a family of reverse phase-based columns. Newcrom A, AH, B, and BH are all mixed-mode columns with either positive or negative ion-pairing groups attached to either short (25 Å) or long (100 Å) ligand chains. Newcrom R1 columns are standard reverse phase columns with octyldecyl silane chains (C18) attached to porous silica. We have also designed a line of Newcrom R1 columns with a new outer design. This column and corresponding adapter entirely eliminate the need for any high-pressure fittings or tubing as well as minimizing all possible dead volumes. Furthermore, if a leak ever occurs in the high-pressure column inlet, the mobile phase is contained within the column adapter (no external leakage).
Select optionsColumn | Newcrom BH, 4.6×150 mm, 5 µm, 100A |
Mobile Phase | MeCN/H2O – 50/50% |
Buffer | H2SO4 – 0.5% |
Flow Rate | 1.0 ml/min |
Detection | UV 200nm |
Class of Compounds | Acid |
Analyzing Compounds | Dichloroacetic acid, Trifluoroacetic acid (TFA), Trichloroacetic acid |
The Newcrom columns are a family of reverse phase-based columns. Newcrom A, AH, B, and BH are all mixed-mode columns with either positive or negative ion-pairing groups attached to either short (25 Å) or long (100 Å) ligand chains. Newcrom R1 columns are standard reverse phase columns with octyldecyl silane chains (C18) attached to porous silica. We have also designed a line of Newcrom R1 columns with a new outer design. This column and corresponding adapter entirely eliminate the need for any high-pressure fittings or tubing as well as minimizing all possible dead volumes. Furthermore, if a leak ever occurs in the high-pressure column inlet, the mobile phase is contained within the column adapter (no external leakage).
Select options

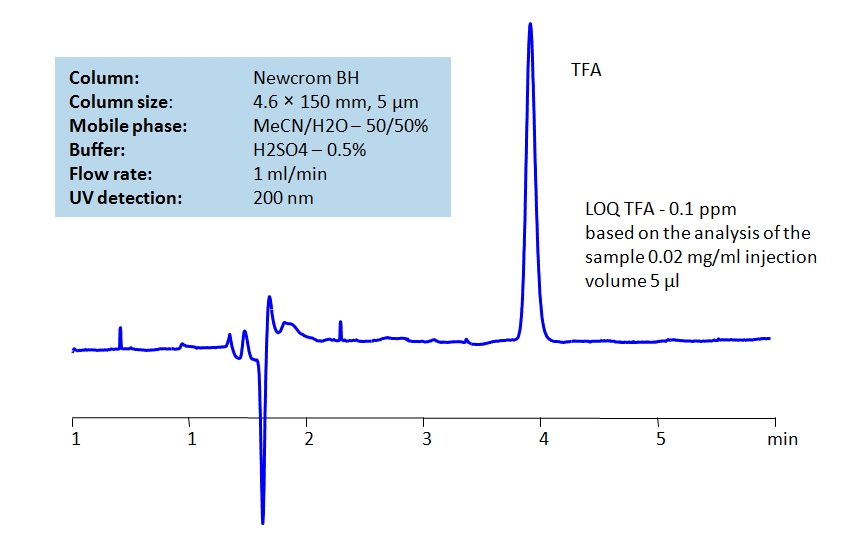

Trifluoroacetic acid (TFA) is a substitution derivative of acetic acid, with fluorine atoms replacing the hydrogen atoms of the acetyl group. It is also a much stronger acid than acetic acid. TFA is widely used in organic synthesis as well as ion pairing reagent or buffer in HPLC. TFA can be detected at low UV. Using Newcrom BH mixed-mode column, a mobile phase of acetonitrile (ACN) and water with sulfuric acid (H2SO4) buffer can be used to retain TFA and UV detect it at 200nm.
Column | Newcrom BH, 4.6×150 mm, 5 µm, 100A |
Mobile Phase | MeCN/H2O – 50/50% |
Buffer | H2SO4 – 0.5% |
Flow Rate | 1.0 ml/min |
Detection | UV 200nm |
Class of Compounds | Acid |
Analyzing Compounds | Trifluoroacetic acid (TFA) |
The Newcrom columns are a family of reverse phase-based columns. Newcrom A, AH, B, and BH are all mixed-mode columns with either positive or negative ion-pairing groups attached to either short (25 Å) or long (100 Å) ligand chains. Newcrom R1 columns are standard reverse phase columns with octyldecyl silane chains (C18) attached to porous silica. We have also designed a line of Newcrom R1 columns with a new outer design. This column and corresponding adapter entirely eliminate the need for any high-pressure fittings or tubing as well as minimizing all possible dead volumes. Furthermore, if a leak ever occurs in the high-pressure column inlet, the mobile phase is contained within the column adapter (no external leakage).
Select optionsSeparation type: Liquid Chromatography Mixed-mode
Trifluoroacetic acid (TFA) and acetic acid (AcOH) are very commonly used in organic chemistry. They were separated using an Obelisc N column which uses HILIC/anion-exchange. The mixed-mode of Obelisc N allows for better peak shape and retention of carboxylic acids. Sulfuric acid was used to enhance polar retention by suppressing ionization of the strong acid TFA.
Column | Obelisc N, 4.6×150 mm, 5 µm, 100A |
Mobile Phase | MeCN – 60% |
Buffer | H2SO4 – 0.05% |
Flow Rate | 1.0 ml/min |
Detection | UV, 210 nm |
Class of Compounds |
Acid, Hydrophilic, Ionizable |
Analyzing Compounds | Trifluoroacetic acid (TFA), Acetic acid (AcOH) |
SIELC has developed the mixed-mode Obelisc™ columns to be the first commercially available columns with Liquid Separation Cell technology (LiSC™). This cost effective duo can replace multiple HPLC columns such as reversed-phase (RP), AQ-type reversed-phase, polar-embedded group RP columns, normal-phase, cation-exchange, anion- exchange, ion-exclusion, and HILIC (Hydrophilic Interaction Liquid Chromatography) columns. By controlling just three orthogonal method parameters - Buffer concentration, Buffer pH, and Organic Modifier Concentration - users can adjust the column properties with pinpoint precision to separate complex mixtures.
Select options
Organic and inorganic acids and ions can be separated on a Primesep B4 column based on their ionic properties. Method can be used for quantitation of residual acids in various products and sample matrices. Trifluoracetic, hydrochloric, methanesulfonic, and nitric acids are separated using ACN-water-ammonium formate. Ions can be detected by ELSD, CAD or LC/MS.
Column | Primesep B4, 4.6×150 mm, 5 µm, 100A |
Mobile Phase | MeCN/H2O |
Buffer | AmFm |
Flow Rate | 1.0 ml/min |
Detection | ELSD |
Class of Compounds |
Ions, Hydrophilic, Ionizable |
Analyzing Compounds | Sodium, Phosphate, Chloride, Nitrate, Sulfate, Iodide, Perchlorate, Trifluoracetic |
The Primesep family of mixed-mode columns offer a wide variety of stationary phases with an unprecedented selectivity in the separation of a broad array of chemical compounds and in multiple applications. Corresponding Primesep guard columns are available with all stationary phases and do not require holders. SIELC offers a method development service which is available for all customers. Ask about our special custom LC-phases tailored for specific separations.
Select optionsIonic liquid is an ionic compound which is liquid at room (or close to room) temperature. Most of the ionic liquids are in a dynamic equilibrium where at any time more than 99.99% of the liquid is made up of ionic, rather than molecular, species. Room-temperature ionic liquids consist of bulky cation (for example, substituted imidazolium) compounds. A wide range of anions is used as counter ions in ionic liquids: organic and inorganic anions such as chloride, iodide, tetrafluoroborate, hexafluorophosphate, bistriflimide, triflate, tosylate. Ionic liquids are widely used as solvents in organic reactions. When products are isolated from ionic liquids, they need to be analyzed for residual ionic liquid content.
Because both constituents of the ionic liquid are very different in terms of charge and hydrophobic properties, it is impossible to analyze entire ionic liquids by traditional chromatography. An effective and universal method for analysis of ionic liquids is developed on an Obelisc R HPLC column. Components on the ionic liquids are retained based on ionic and hydrophobic interactions. Obelisc R column has both positively and negatively charged ionic groups, making it possible to retain and separate cations and anions of ionic liquids on one column. Method can be used for quantitative of various ionic liquids containing organic and inorganic ions. Retention time of basic component can be effectively adjusted by pH, stronger anionic and hydrophobic counter-ions might require higher buffer concentration. Composition can be monitored by combination of UV and ELSD or by LC/MS.
Column | Obelisc R , 4.6×150 mm, 5 µm, 100A |
Mobile Phase | MeCN/H2O |
Buffer | AmAc |
Flow Rate | 1.0 ml/min |
Detection | ELSD |
Class of Compounds |
Acid |
Analyzing Compounds | 1-Methyl-3-propylimidazolium, Bromide Ion, Methylsulfonic Acid, Trifluoroacetic Acid, Perchloric Acid, p-Toluenesulfonic Acid |
SIELC has developed the mixed-mode Obelisc™ columns to be the first commercially available columns with Liquid Separation Cell technology (LiSC™). This cost effective duo can replace multiple HPLC columns such as reversed-phase (RP), AQ-type reversed-phase, polar-embedded group RP columns, normal-phase, cation-exchange, anion- exchange, ion-exclusion, and HILIC (Hydrophilic Interaction Liquid Chromatography) columns. By controlling just three orthogonal method parameters - Buffer concentration, Buffer pH, and Organic Modifier Concentration - users can adjust the column properties with pinpoint precision to separate complex mixtures.
Select optionsTrifluoroacetic acid (TFA) is a strong carboxylic acid, with pKa of 0.3. TFA is widely used in chemistry as reagent and as counter-ion for basic drugs and other compounds. TFA is very polar in nature, and has low UV activity. It is often required to quantitate trifluoracetic acid in various formulations. HPLC method for determination of trifluoroacetic acid on Obelisc N column provides a viable alternative for quantitation of TFA. TFA is retained by ion-exchange mechanism on mixed-mode HILIC column. Relative comparison shows high loadability of the method. Obelisc N columns show much better peak shape and retention than traditional HPLC columns (Atlantis T3 from Waters). Perfect peak symmetry is achieved by adjusting amount of acetonitrile, buffer pH and buffer concentration. TFA is monitored by low UV (200 nm). Alternatively trifluoroacetic acid can be analyzed by ESLD with ammonium formate in the mobile phase. TFA forms non-volatile salt with ammonia, thus giving ability to quantitate it.
SIELC has developed the mixed-mode Obelisc™ columns to be the first commercially available columns with Liquid Separation Cell technology (LiSC™). This cost effective duo can replace multiple HPLC columns such as reversed-phase (RP), AQ-type reversed-phase, polar-embedded group RP columns, normal-phase, cation-exchange, anion- exchange, ion-exclusion, and HILIC (Hydrophilic Interaction Liquid Chromatography) columns. By controlling just three orthogonal method parameters - Buffer concentration, Buffer pH, and Organic Modifier Concentration - users can adjust the column properties with pinpoint precision to separate complex mixtures.
Select optionsDual functionality of Obelisc N column allows to retain and provide efficient peaks of strong carboxylic acids such as TFA. Simple UV quantitation and identification method became possible due to the unique properties of this stationary phase. In case of an RP separation poor retention and peak symmetry was obtained at a very low concentration of ACN. Sulfuric acid was used to suppress ionization of TFA to increase the hydrophobicity. In case of a typical HILIC column the phosphoric acid was used to increase ionization to make TFA more polar to enhance polar retention. The types of columns that do not have the mixed mode nature of Obelisc N can’t provide significant retention and efficiency.
SIELC has developed the mixed-mode Obelisc™ columns to be the first commercially available columns with Liquid Separation Cell technology (LiSC™). This cost effective duo can replace multiple HPLC columns such as reversed-phase (RP), AQ-type reversed-phase, polar-embedded group RP columns, normal-phase, cation-exchange, anion- exchange, ion-exclusion, and HILIC (Hydrophilic Interaction Liquid Chromatography) columns. By controlling just three orthogonal method parameters - Buffer concentration, Buffer pH, and Organic Modifier Concentration - users can adjust the column properties with pinpoint precision to separate complex mixtures.
