The Alltesta™ Mini UV-Vis Detector is a compact multi-wavelength UV-Vis detector designed for researchers and analysts. It provides reliable, real-time monitoring of the optical properties of flowing liquids and can be integrated into a variety of analytical systems. The detector is suitable for applications including High-Performance Liquid Chromatography (HPLC), Flow Injection Analysis (FIA), preparative and flash chromatography, and other flow-based analytical techniques. The standard configuration includes four wavelength channels: 275 nm (UV), 460 nm (Blue), 520 nm (Green), and 630 nm (Red). Custom configurations are also available, allowing any four wavelengths starting from 255 nm to be factory-selected to meet specific application requirements.

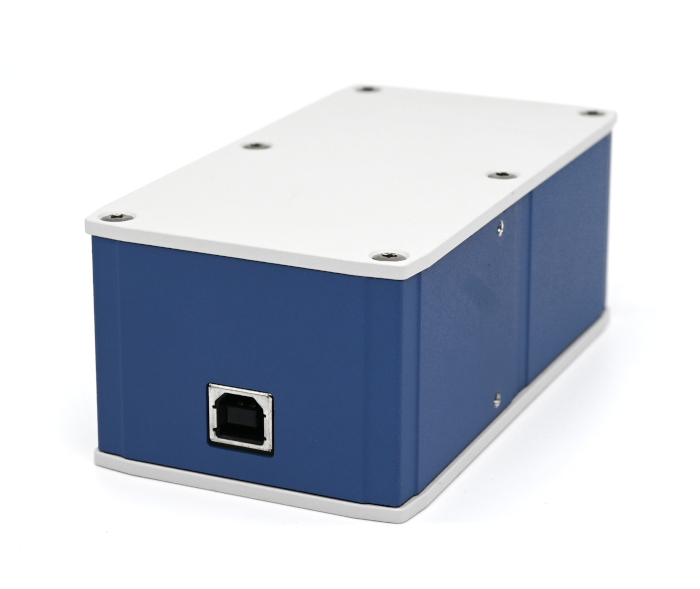

The Alltesta™ Mini UV-Vis Detector features a simple setup with a USB interface for communication with the Alltesta™ Analyzer or integration with other instrumentation. Powered through its USB connection, the detector can monitor up to four wavelengths simultaneously and acquire data at 20 samples per second per channel. Optical flow cells are available in 3 µL and 10 µL configurations. The low-volume flow cell minimizes sample dispersion and helps maintain chromatographic performance, even at low flow rates. The detector uses highly stable LED light sources, providing instant start-up, low power consumption, long operational life, and eliminating the need for routine lamp replacement. A built-in adjustable pressure regulator helps maintain a bubble-free optical path.The detector can also be supplied with an optional analog output module for integration with external data acquisition and analytical systems.

For pricing information, please contact us at alltesta@sielc.com.

Special Features

• Custom Wavelength Configurations – Any four wavelengths starting from 255 nm can be factory-selected to meet specific application requirements.
• Open Serial Command Protocol – An open serial protocol is available for customers who want to develop their own control software.
• Multi-Wavelength Detection – Standard four-channel detection wavelengths are:
  • 275 nm (UV)
  • 460 nm (Blue)
  • 520 nm (Green)
  • 630 nm (Red)
• Compact and Lightweight – Compact design suitable for laboratory systems, instrument integration, and space-limited applications.
• Low-Volume Optical Cells – Available in 3 µL and 10 µL configurations.
• Minimal Sample Dispersion – Low-volume optical flow cells help maintain chromatographic performance even at low flow rates.
• Built-in Adjustable Pressure Regulator – Maintains 10–75 psi internal pressure to help provide a bubble-free optical path.
• High-Speed Data Acquisition – 20 samples per second per channel.
• Excellent Linearity – Reliable detection across a wide concentration range.
• LED-Based Detection Technology – Stable solid-state light sources provide long operational life with no routine lamp replacement.
• Zero Warm-Up Time – Ready for immediate operation.
• USB-Powered – No separate power supply is required for detector operation.
• Optional Analog Output – Available for integration with external data acquisition and analytical systems.

Performance Specifications

Applications

The Alltesta™ Mini UV-Vis Detector is suitable for a wide range of applications, including:

• High-Performance Liquid Chromatography (HPLC): Provides reliable real-time detection of separated components based on their absorbance at selected wavelengths.
• Flow Injection Analysis (FIA): Provides continuous and rapid monitoring of flowing samples for automated analytical applications.
• Preparative and Flash Chromatography: Supports real-time monitoring of chromatographic separations and detection of collected fractions.
• Real-Time Liquid Flow Monitoring: Continuously monitors the optical properties of flowing liquids for applications requiring real-time analytical data.
• Analytical Chemistry and Research Laboratories: Suitable for a variety of analytical and research applications requiring compact, multi-wavelength UV-Vis detection.
• OEM and Instrument Integration: Compact dimensions, USB-powered operation, an open serial command protocol, and optional analog output support integration into custom analytical instrumentation.

Software & Connectivity

• Direct Serial Commands – The detector can be controlled using the Serial Alltesta™ protocol. The protocol is available upon request; please contact us at support@sielc.com.
• Demo Software – The detector can be operated directly through our demo software, allowing users to explore the functionality of the unit
  (Windows 10, 32/64-bit, 5 MB,
  Windows 7, 32/64-bit, 127 MB).
• Alltesta™ Analyzer Integration – The detector can be integrated with the Alltesta™ Analyzer.
• Optional Analog Output – The detector output can be monitored through an optional analog signal output for integration with external data acquisition and analytical systems.

Serial Communication Drivers are available here.
