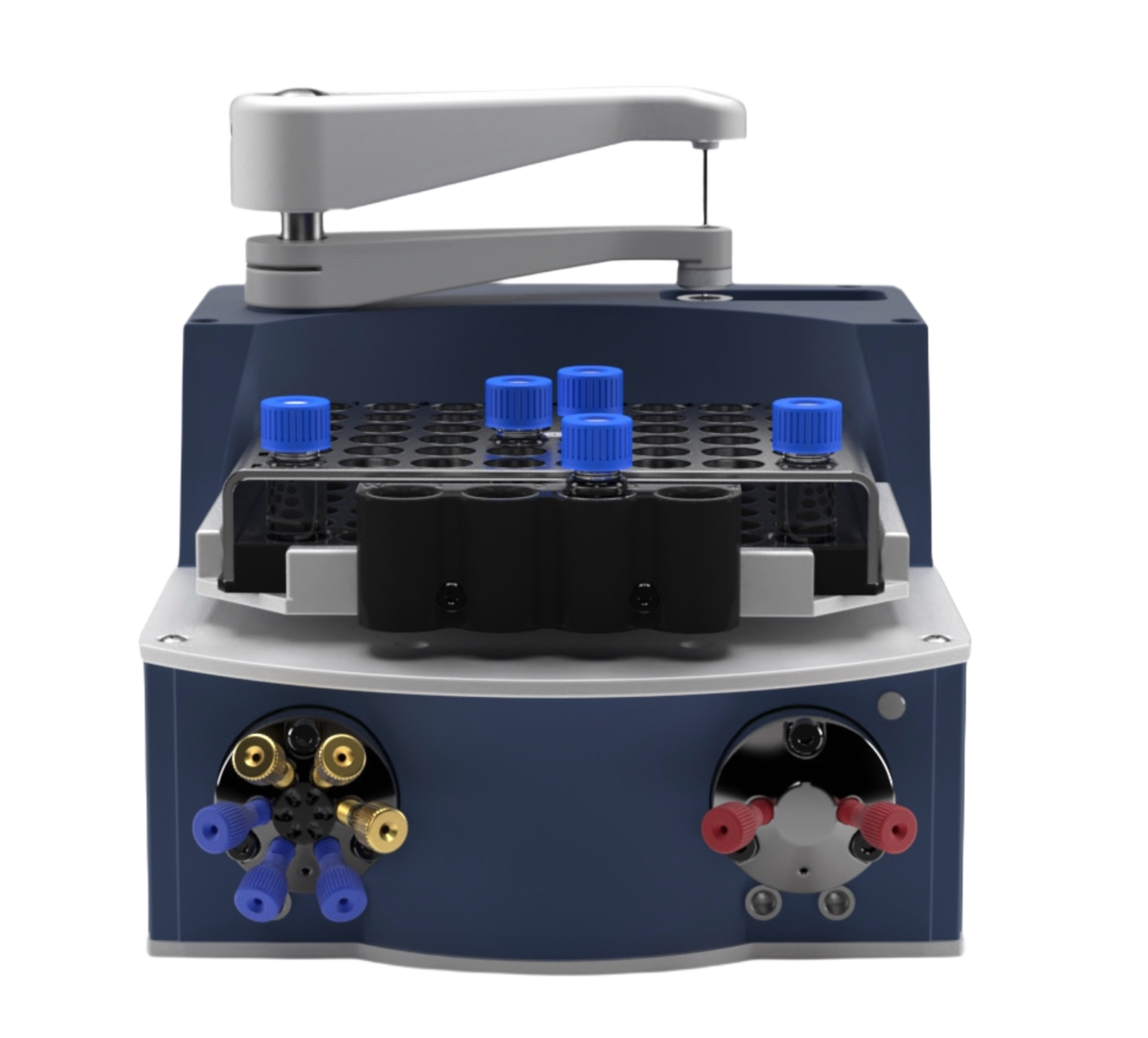

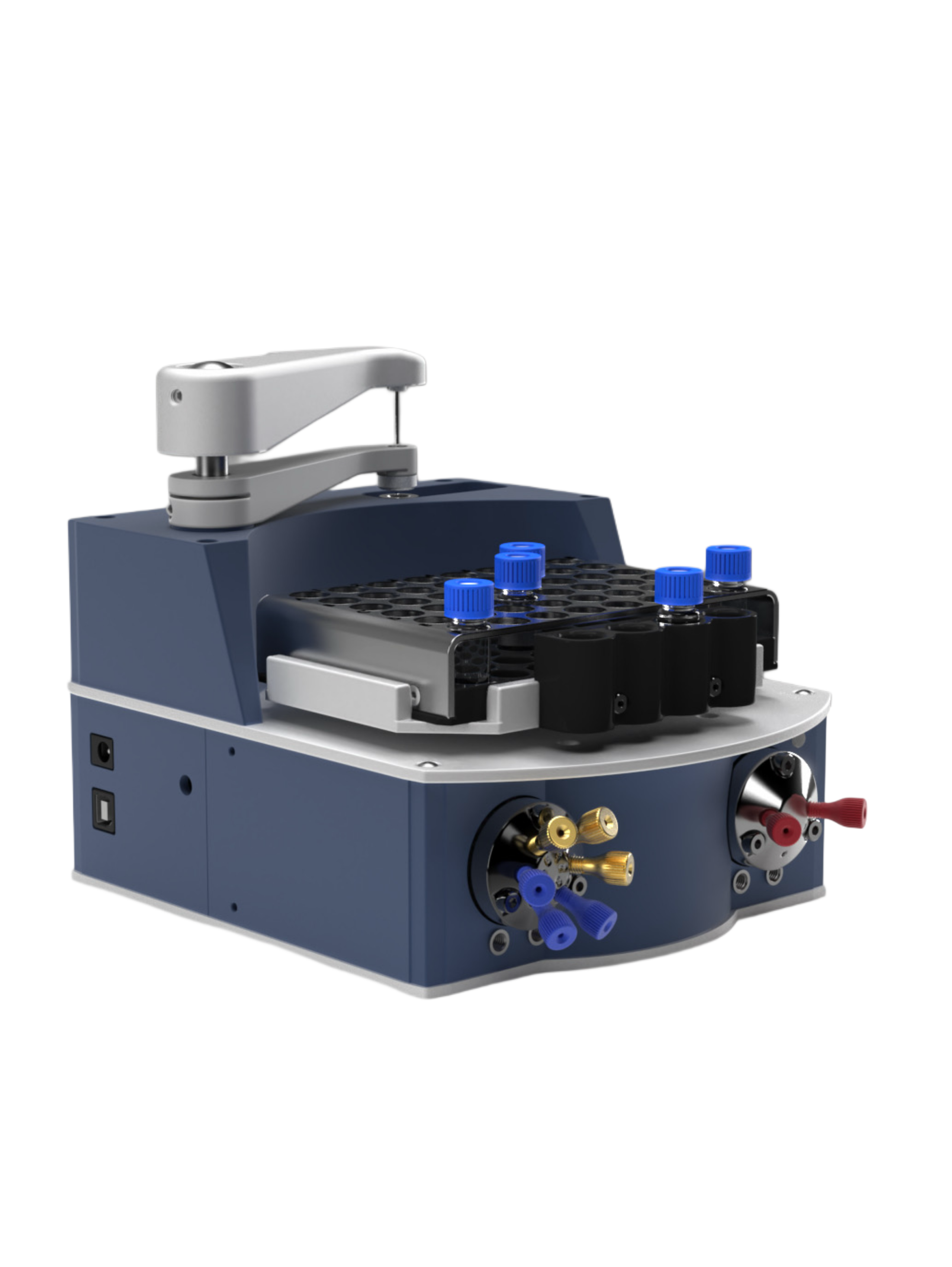

Alltesta™ Mini-Autosampler
The Alltesta™ Mini-Autosampler, developed by SIELC Technologies, is a cost-effective solution for automated liquid sample handling in various environments, including HPLC. Its compact design and customizable configurations make it ideal for laboratories with limited bench space and mobile instrumentation settings.
The system combines flexible hardware configurations with sample mixing capabilities. Available options include different valve configurations, syringe capacities, needle types, vial trays, and well plates. An open serial command protocol supports integration into existing instruments and custom automation workflows.
Key Features
- Built-In Shaking: Mix samples before injection, perform extraction directly within a vial, or quench samples with reagent delivered by the syringe pump.
- Compact Design: Save valuable bench space and integrate automated sample handling into compact or mobile instruments.
- Direct Serial Control: Control individual modules through a comprehensive serial command protocol for integration with existing systems or custom software.
- Flexible Configuration: Select valve configurations, syringe capacities, needle types, vial trays, and well plates to match your application.
- OEM Customization: Custom shapes, colors, and vial sizes are available for integration into OEM instruments.
Automated Liquid Handling Capabilities
The Alltesta™ Mini-Autosampler supports a range of liquid handling workflows. Depending on the application, software modifications and a suitable hardware configuration may be required.
- Fraction Collection: With a software modification, the autosampler can function as a fraction collector, collecting individual fractions in designated vials.
- Reactor Probe Sampling: The autosampler can be adapted through a software modification for reactor probe sampling.
- Sequential Sample Delivery: Deliver a series of samples to detectors or spectrometers, including NMR and MS systems. The compact design allows placement close to the measuring cell, helping minimize sample spreading and measurement delay.
- Reagent Addition, Sample Dilution, and Mixing: Prepare samples for subsequent analytical steps using integrated liquid handling and mixing capabilities.
- Loading Fluidic Devices: Automate sample storage and delivery to microfluidic devices, with user-adjustable sample volumes delivered to a line connected to the chip.
- Sequential Fluorescence In Situ Hybridization (seqFISH+): Automate RNA fluorescent marker delivery and provide access to multiple buffers for seqFISH+ workflows.
The Alltesta™ Mini-Autosampler can also be used as a component of Alltesta™ Analyzers.
Technical Specifications
| Specification | Standard Configuration | Customizable Configuration |
|---|---|---|
| Dimensions (W × H × L) | 160 × 145 × 195 mm 6.3 × 5.71 × 7.68 in |
Depends on configuration |
| Weight | 3 kg / 6.6 lb | Depends on configuration |
| Power Supply | 24 V | 24 V |
| Sample Trays and Plates | 48-vial tray | 48-vial tray 54-vial tray 96-well plate 384-well plate |
| Pressure Rating* | Up to 5,000 psi (345 bar) | Depends on configuration |
| Syringe Options | 4,000 µL low-pressure stainless steel syringe | 120 µL high-pressure syringe 4,000 µL low-pressure stainless steel syringe 4,000 µL low-pressure ceramic syringe |
| Valve Options | 6×2 | 6×2 7×6 10×9 Alternative rotor configurations for 6×2 and 7×6 valves |
| Needle Options | Short (36 mm) | Short (36 mm) Long (46 mm) Short Capillary (36 mm) Short vented (36 mm) |
| Other | Wash station | Vial sensor Wash station |
| Volume Accuracy | 0.1 µL | Depends on configuration |
| Wetted Materials | SS316, PTFE, PEEK | SS316, PTFE, PEEK; syringe material depends on the selected option |
| Communication | UART serial communication using an FTDI chip and driver | UART serial communication using an FTDI chip and driver |
*Pressure capability depends on the selected configuration and fluidic components. The system pressure rating should not be interpreted as the operating pressure of the syringe pump. Please contact alltesta@sielc.com for assistance selecting a configuration for your application.
Software and System Integration
The Alltesta™ Mini-Autosampler is controlled through serial commands. An open, comprehensive protocol is available for customers developing their own control software.
The command set provides operational control over individual autosampler modules. Hardware options include valve configurations, tray designs, syringe volumes, needle types, and vial sizes. Full software integration support is available for qualified customers.
- Serial Command Protocol: Request the protocol and integration documentation at alltesta@sielc.com.
- Demo Software: Contact alltesta@sielc.com to obtain the current software version and confirm operating system compatibility.
- Communication Drivers: FTDI Virtual COM Port drivers are available from the FTDI website.
Application Areas
The Alltesta™ Mini-Autosampler supports automated sample handling across a range of analytical and research applications:
- Environmental Monitoring: Automated sample handling for environmental analysis workflows.
- Pharmaceutical Testing: Sample handling for drug formulation, dissolution studies, and quality control testing.
- Food and Beverage Analysis: Sample processing for food safety, quality testing, and flavor profile analysis.
- Biotechnology and Research: Automated sample preparation and handling for research workflows.
- Clinical and Diagnostic Laboratory Workflows: Automated liquid handling for assay development and laboratory integration.
Documents and Downloads
To request the user manual, serial command protocol, current demo software, or configuration assistance, please email alltesta@sielc.com.
Alltesta™ Mini-Autosampler Videos
Operating Schematic
The schematic below illustrates a basic operating configuration of the Alltesta™ Mini-Autosampler.
Configure the Alltesta™ Mini-Autosampler for Your Application
Contact alltesta@sielc.com for pricing, technical questions, OEM integration, or help selecting valves, syringes, needles, and sample trays.
Based on a proprietary alpha/beta mechanic configuration, this miniature autosampler offers inexpensive and reliable automation for many analytical- and liquid-handling settings, including HPLC. Direct and comprehensive control of this small autosampler’s features, as well as high-level commands for succinct automation, provide quick and easy integration. Users can customize their mini autosampler with various valve configurations, tray designs, and syringe volumes and pressures. A built-in shaking feature allows for sample-mixing before injection and/or simple sample extraction inside the vial.
The price of the Alltesta™ Mini Autosampler varies depending on the specific configuration requested. For more information on pricing, please contact us at alltesta@sielc.com.
36-month financing with market rates is offered to companies, individuals, and educational institutions subject to credit approval. For more details please contact us at financing@sielc.com.
