Alltesta™ Mini LP Syringe Pump
- Description
- Purchase
| Brand | SIELC Technologies |
|---|

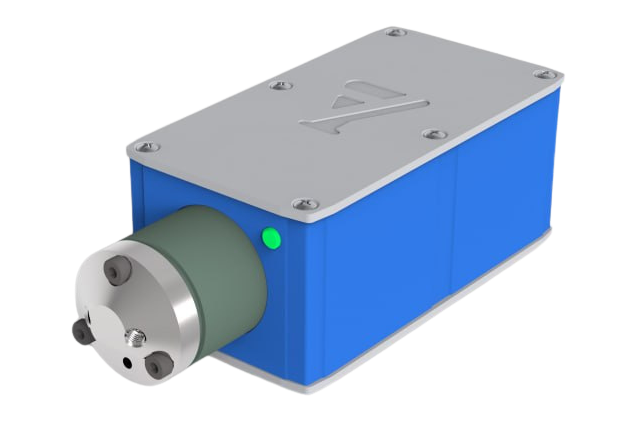

Alltesta™ Mini LP Syringe Pump
The Alltesta™ Mini LP Syringe Pump combines precise syringe-based liquid delivery with a compact footprint, making it ideal for analytical instruments, laboratory automation, and OEM integration. Delivering stable, pulse-free flow from 0.001 to 8 mL/min at pressures up to 200 psi (4.0 mL syringe) or 1000 psi (120 µL syringe), the pump ensures accurate and reproducible fluid handling across a wide range of applications. A built-in pressure sensor, chemically resistant wetted flow path, and open UART communication interface provide reliable operation and seamless integration into custom systems. Free Windows-based control software is included for convenient setup and complete device control.
For pricing information, please contact us at alltesta@sielc.com.
Special Features
- Pulse-Free Flow: Provides smooth and continuous liquid delivery for exceptional flow stability and highly reproducible performance.
- Wide Flow Rate Range: Supports flow rates from 0.001 to 8 mL/min, making the pump suitable for both ultra-low flow applications and higher-volume liquid transfer.
- High Pressure Capability: Delivers continuous operation at pressures up to 200 psi (4.0 mL syringe) or 1000 psi (120 µL syringe), enabling reliable fluid delivery in systems with high backpressure.
- Built-in Pressure Monitoring: An integrated pressure sensor provides real-time pressure measurements with ±1 psi accuracy for improved process monitoring and system protection.
- Compact Design: The compact form factor simplifies integration into benchtop instruments, laboratory automation platforms, and OEM equipment.
- Chemically Resistant Wetted Materials: The fluid path is constructed from SS316, PTFE, PEEK, and UHMW, providing compatibility with a wide range of laboratory solvents and reagents.
- Open Communication Interface: The pump communicates through a UART interface using an open serial command protocol, allowing straightforward integration with custom software, automated systems, and third-party instrumentation.
Performance Specifications
| Alltesta™ Mini LP Syringe Pump | Alltesta™ Mini LP Syringe Pump |
|---|---|
| Dimensions (WHL) | 63x52x145 mm / 2.48×2.05×5.71 in |
| Weight | 1.5 kg / 3.31 lb |
| Syringe volume | 4.0 mL or 100 µL |
| Power Requirements | 24 VDC |
| Current Requirements | Up to 2.5 A |
| Flow Rate Range | 0.001 to 8 mL/min |
| Speed Accuracy | 1% of full-scale |
| Linearity Full Range | Linearity Full Range |
| Maximum working pressure | 200 psi (4.0 mL syringe); 1000 psi (120 µL syringe) |
| Operating Temperature | 0 to 40° C, non-condensing |
| Inlet/Outlet | 10-32 UNF compression-type thread |
| Materials in contact with liquid | SS316, PTFE, PEEK, UHMW |
| Communication | UART interface (primary communication method) |
Applications
The Alltesta™ Mini LP Syringe Pump is suitable for a wide range of analytical, laboratory, and industrial applications, including:
- Analytical Instrumentation – precise delivery of solvents, reagents, and samples for analytical systems.
- Flow Injection Analysis (FIA) – stable and reproducible flow for accurate sample introduction and continuous-flow analysis.
- Microfluidics and Lab-on-a-Chip Systems – precise low-volume liquid handling for microfluidic devices and miniaturized analytical platforms.
- Laboratory Automation – automated reagent dispensing, sample transfer, and controlled liquid handling.
- Pharmaceutical and Biotechnology Research – accurate dosing of buffers, reagents, standards, and formulation components.
- OEM Integration – compact size, reliable performance, and an open communication protocol make the pump an excellent choice for integration into custom laboratory instruments and automated platforms.
Software & Connectivity
The Alltesta™ Low Pressure Mini Syringe Pump can be operates by several ways:
- Direct Serial Commands – Serial Alltesta™ protocol (the protocol available upon request, please contact us at support@sielc.com)
- Demo Software – directly via our demo software, allowing to learn the whole functionality of the unit (Windows 10, 32/64bit, 5Mb, Windows 7, 32/64bit, 127Mb)
- Serial Communication Drivers are available here.
If you want more information, click here.
Alltesta™ Ultra High Pressure Mini Syringe Pump is designed to produce a steady, high pressure, pulsation-free flow, so there is no need for bulky dampeners, mixers, and precision check valve arrangements. It can refill prior to each run in less than a minute, and can produce flow rates from as low 1 μL/min to as fast as 4000 μL/min with pressure up to 4000 psi (285 bar).
