Hexahydrophthalic anhydride

Hexahydrophthalic anhydride structural formula

CAS Number85-42-7
Molecular FormulaC8H10O3
Molecular Weight154.165
InChI KeyMUTGBJKUEZFXGO-UHFFFAOYSA-N
LogP0.995
Synonyms
  • Hexahydrophthalic anhydride
  • Hexahydro-2-benzofuran-1,3-dione
  • 1,3-Isobenzofurandione, hexahydro-
  • 85-42-7
  • 1,3-Isobenzofurandione, hexahydro-
  • 1,2-CYCLOHEXANDICARBONSAEUREANHYDRID
  • 1,2-Cyclohexanedicarboxylic acid anhydride
  • 1,2-Cyclohexanedicarboxylic anhydride
  • anhidrido ciclohexano-1,2-dicarboxilico
  • Anhydride cyclohexane-1,2-dicarboxylique
  • Araldite Hardener HY 925
  • Araldite HT 904
  • Araldite HT 907
  • Araldite HY 907
  • Araldite HY 925
  • Cyclohexan-1,2-dicarbonsaureanhydrid
  • cyclohexane-1,2-dicarboxylic anhydride
  • Cyclohexanedicarboxylic anhydride
  • Epilox H 11-01
  • Hexahydro-1,3-isobenzofurandione
  • Hexahydrophthalic acid anhydride
  • Lekutherm Hardener H
  • NSC 8622
  • PHTHALIC ANHYDRIDE, HEXAHYDRO-
  • Rikacid HH
  • Rikacid HH-A
  • Rikacid HHPA
  • Rikacid MH 700E
  • Rutadur AG
  • Rutapox HX
  • EINECS 201-604-9
  • 1,2-Cyclohexane dicarboxylic anhydride
  • Cyclohexane-1,2-dicarboxylic acid anhydride
  • Cyclohexane-1,2-dicarboxylic anhydride
  • HHPA
  • 102483-85-2
  • 109265-67-0
  • 117276-22-9
  • 95327-28-9

Applications:

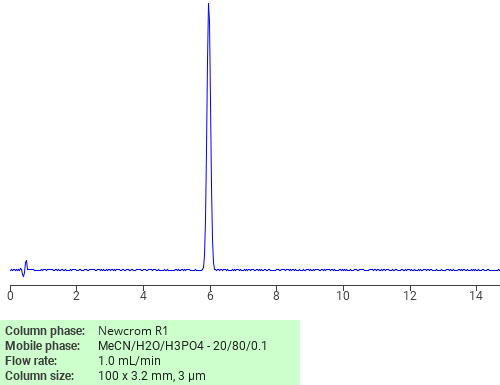

Separation of Hexahydrophthalic anhydride on Newcrom R1 HPLC column

May 16, 2018
Separation of Hexahydrophthalic anhydride on Newcrom R1 HPLC column

Hexahydrophthalic anhydride can be analyzed by this reverse phase (RP) HPLC method with simple conditions. The mobile phase contains an acetonitrile (MeCN), water, and phosphoric acid. For Mass-Spec (MS) compatible applications the phosphoric acid needs to be replaced with formic acid. Smaller 3 µm particles columns available for fast UPLC applications. This liquid chromatography method is scalable and can be used for isolation impurities in preparative separation. It also suitable for pharmacokinetics.

Application Column

Newcrom R1

The Newcrom columns are a family of reverse-phase-based columns. Newcrom A, AH, B, and BH are all mixed-mode columns with either positive or negative ion-pairing groups attached to either short (25 Å) or long (100 Å) ligand chains. Newcrom R1 is a special reverse-phase column with low silanol activity.

Select options
Application Analytes:
Hexahydrophthalic anhydride
The result was obtained by a proprietary SIELC algorithm. It may deviate from the actual experimental data. The experimental data are available upon request. Contact us by e-mail: support@sielc.com or by phone: 847-229-2629.
