4,4’-Diazene-1,2-diylbis(4-cyanopentanoic acid)

4,4’-Diazene-1,2-diylbis(4-cyanopentanoic acid) structural formula

CAS Number2638-94-0
Molecular FormulaC12H16N4O4
Molecular Weight280.284
InChI KeyVFXXTYGQYWRHJP-FOCLMDBBSA-N
LogP1.04
Synonyms
  • 4,4'-Diazene-1,2-diylbis(4-cyanopentanoic acid)
  • 4,4'-[(E)-Diazenediyl]bis(4-cyanopentanoic acid)
  • Pentanoic acid, 4,4'-[(E)-1,2-diazenediyl]bis[4-cyano-
  • 2638-94-0
  • Pentanoic acid, 4,4'-azobis[4-cyano-
  • 4-04-00-03382
  • 4,4'-Azobis(4-cyanopentanecarboxylic acid)
  • 4,4'-Azobis(4-cyanovaleric acid)
  • 4,4'-Azobis(cyanovaleric acid)
  • 4,4'-Azobis[4-cyanopentanoic acid]
  • 4,4'-Azobis[4-cyanovaleric acid]
  • 4,4'-azobis[4-cyanovaleric] acid
  • 4,4'-Azobis[4-cyanvalerian]saure
  • acide 4,4'-azobis[4-cyanovalerique]
  • Acide azo-4,4'-bis[4-cyanovalerique]
  • acido 4,4'-azobis[4-cianovalerico]
  • Azobis(cyanovaleric acid)
  • NSC 114466
  • Pentanoic acid, 4,4'-(1,2-diazenediyl)bis[4-cyano-
  • Valeric acid, 4,4'-azobis[4-cyano-
  • 4,4'-Azobis(4-cyanopentanoic acid)
  • BRN 1729856
  • EINECS 220-135-0
  • Kyselina 4,4'-azo-bis-(4-kyanvalerova)
  • 158947-06-9
  • 159172-39-1
  • 209196-69-0
  • 252237-53-9
  • 25532-89-2
  • 30248-30-7
  • 306284-14-0

Applications:

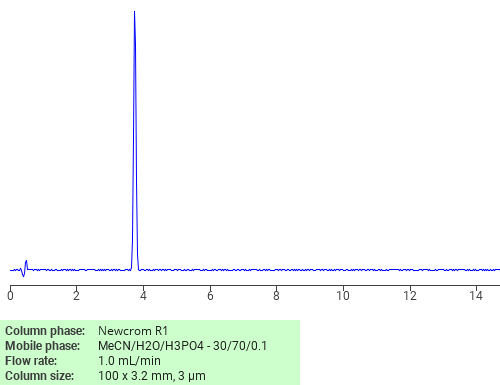

Separation of 4,4’-Diazene-1,2-diylbis(4-cyanopentanoic acid) on Newcrom R1 HPLC column

February 16, 2018
Separation of 4,4’-Diazene-1,2-diylbis(4-cyanopentanoic acid) on Newcrom C18 HPLC column

4,4’-Diazene-1,2-diylbis(4-cyanopentanoic acid) can be analyzed by this reverse phase (RP) HPLC method with simple conditions. The mobile phase contains an acetonitrile (MeCN), water, and phosphoric acid. For Mass-Spec (MS) compatible applications the phosphoric acid needs to be replaced with formic acid. Smaller 3 µm particles columns available for fast UPLC applications. This liquid chromatography method is scalable and can be used for isolation impurities in preparative separation. It also suitable for pharmacokinetics.

Application Column

Newcrom R1

The Newcrom columns are a family of reverse-phase-based columns. Newcrom A, AH, B, and BH are all mixed-mode columns with either positive or negative ion-pairing groups attached to either short (25 Å) or long (100 Å) ligand chains. Newcrom R1 is a special reverse-phase column with low silanol activity.

Select options
Application Analytes:
4,4’-Diazene-1,2-diylbis(4-cyanopentanoic acid)
The result was obtained by a proprietary SIELC algorithm. It may deviate from the actual experimental data. The experimental data are available upon request. Contact us by e-mail: support@sielc.com or by phone: 847-229-2629.
