Azobenzene

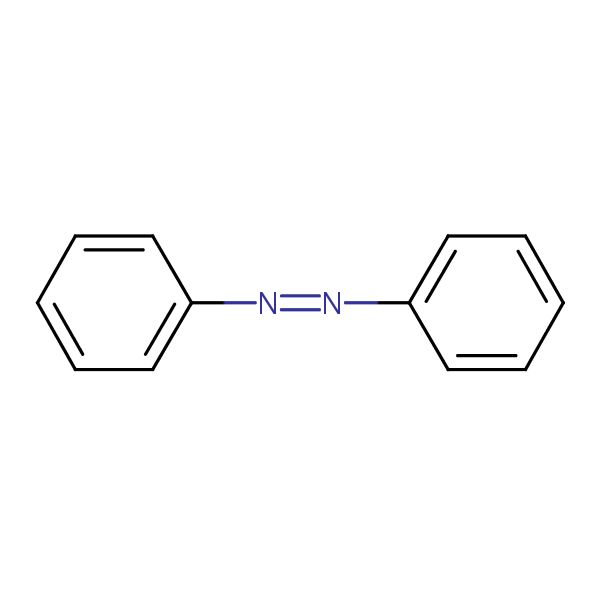

Azobenzene structural formula

CAS Number103-33-3
Molecular FormulaC12H10N2
Molecular Weight182.226
InChI KeyDMLAVOWQYNRWNQ-UHFFFAOYSA-N
LogP3.82
Synonyms
  • Azobenzene
  • Diphenyldiazene
  • Diazene, 1,2-diphenyl-
  • 103-33-3
  • 1-16-00-00218
  • Diazene, diphenyl-
  • 1,2-Diphenyldiazene
  • azobenceno
  • Azobenzide
  • Azobenzol
  • Benzene, azo-
  • Benzene, azobis-
  • Benzeneazobenzene
  • Diazene, 1,2-diphenyl-
  • Diphenyldiazene
  • Diphenyldiimide
  • NSC 2102
  • Phenylazobenzene
  • Benzene, azodi
  • BRN 0742609
  • Caswell No. 064
  • EINECS 203-102-5
  • EPA Pesticide Chemical Code 007401
  • NCI-C02926
  • USAF EK-704
  • Azobenzeen
  • UNII-F0U1H6UG5C
  • (E)-1,2-diphenyldiazene
  • Azobisbenzene
  • Azodibenzene
  • Azodibenzeneazofume
  • Azofume
  • Benzofume
  • Diazobenzene
  • Diphenyldiimide
  • trans-Azobenzene

Applications:

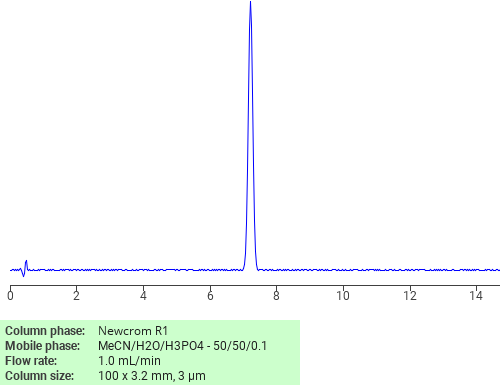

Separation of Azobenzene on Newcrom R1 HPLC column

May 16, 2018
Separation of Azobenzene on Newcrom R1 HPLC column

Azobenzene is a molecule that is made up of two nitrogen atoms each bound to a phenyl group. It is used to make dyes. Azobenzene can be analyzed by this reverse phase (RP) HPLC method with simple conditions. The mobile phase contains acetonitrile (MeCN), water, and phosphoric acid. For Mass-Spec (MS) compatible applications the phosphoric acid needs to be replaced with formic acid. Smaller 3 µm particle columns are available for fast UPLC applications. This liquid chromatography method is scalable and can be used for isolation of impurities in preparative separation. It also suitable for pharmacokinetics.

Application Column

Newcrom R1

The Newcrom columns are a family of reverse-phase-based columns. Newcrom A, AH, B, and BH are all mixed-mode columns with either positive or negative ion-pairing groups attached to either short (25 Å) or long (100 Å) ligand chains. Newcrom R1 is a special reverse-phase column with low silanol activity.

Select options
Application Analytes:
Azobenzene
The result was obtained by a proprietary SIELC algorithm. It may deviate from the actual experimental data. The experimental data are available upon request. Contact us by e-mail: support@sielc.com or by phone: 847-229-2629.
