C.I. Pigment Yellow 109

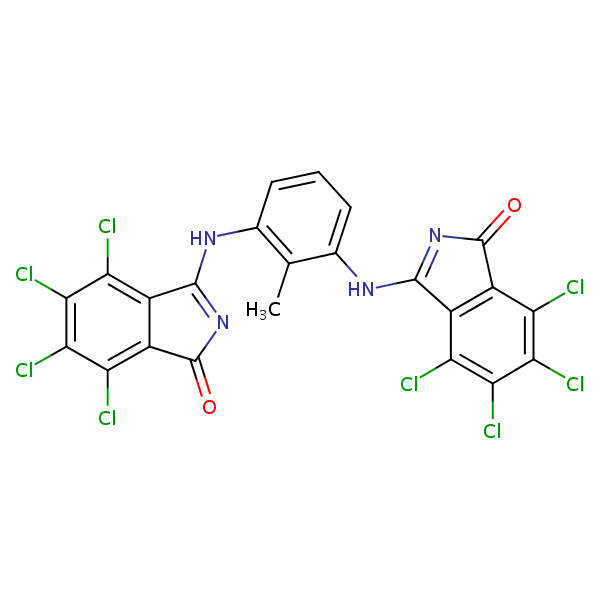

C.I. Pigment Yellow 109 structural formula

CAS Number5045-40-9
Molecular FormulaC23H8Cl8N4O2
Molecular Weight655.941
InChI KeyWZSFTHVIIGGDOI-UHFFFAOYSA-N
LogP6.93
Synonyms
  • C.I. Pigment Yellow 109
  • 3,3'-[(2-Methyl-1,3-phenylene)diazanediyl]bis(4,5,6,7-tetrachloro-1H-isoindol-1-one)
  • 1H-Isoindol-1-one, 3,3'-[(2-methyl-1,3-phenylene)diimino]bis[4,5,6,7-tetrachloro-
  • 5045-40-9
  • EINECS 225-744-5
  • UNII-AFB0QQM2VZ

Applications:

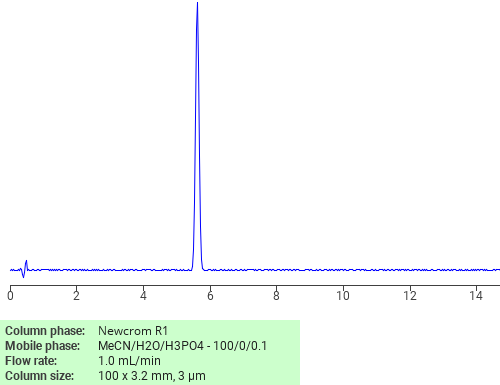

Separation of C.I. Pigment Yellow 109 on Newcrom R1 HPLC column

May 16, 2018
Separation of C.I. Pigment Yellow 109 on Newcrom R1 HPLC column

C.I. Pigment Yellow 109 can be analyzed by this reverse phase (RP) HPLC method with simple conditions. The mobile phase contains an acetonitrile (MeCN), water, and phosphoric acid. For Mass-Spec (MS) compatible applications the phosphoric acid needs to be replaced with formic acid. Smaller 3 µm particles columns available for fast UPLC applications. This liquid chromatography method is scalable and can be used for isolation impurities in preparative separation. It also suitable for pharmacokinetics.

Application Column

Newcrom R1

The Newcrom columns are a family of reverse-phase-based columns. Newcrom A, AH, B, and BH are all mixed-mode columns with either positive or negative ion-pairing groups attached to either short (25 Å) or long (100 Å) ligand chains. Newcrom R1 is a special reverse-phase column with low silanol activity.

Select options
Application Analytes:
C.I. Pigment Yellow 109
The result was obtained by a proprietary SIELC algorithm. It may deviate from the actual experimental data. The experimental data are available upon request. Contact us by e-mail: support@sielc.com or by phone: 847-229-2629.
