Anthra[2,1,9-mna]naphth[2,3-h]acridine-5,10,15(16H)-trione

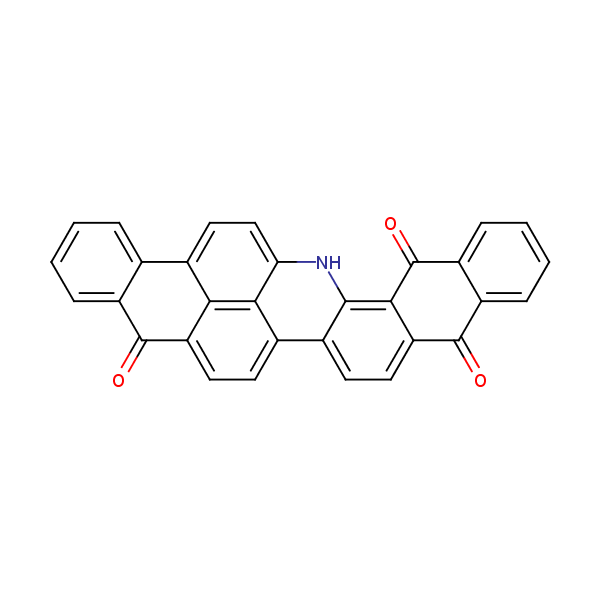

Anthra[2,1,9-mna]naphth[2,3-h]acridine-5,10,15(16H)-trione structural formula

CAS Number3271-76-9
Molecular FormulaC31H15NO3
Molecular Weight449.465
InChI KeyHHKPGQSPFVLKMV-UHFFFAOYSA-N
LogP5.78
Synonyms
  • Anthra[2,1,9-mna]naphth[2,3-h]acridine-5,10,15(16H)-trione
  • Anthra[2,1,9-mna]naphtho[2,3-h]acridine-5,10,15(16H)-trione
  • 3271-76-9
  • 0-21-00-00571
  • C.I. Vat Green 3
  • Ahcoval Olive Green BL
  • Ahcoval Olive Green BL-F
  • Ahcoval Olive Green BLD
  • Ahcoval Printing Olive Green BL
  • Amanthrene Olive Green B
  • Amanthrene Supra Olive Green B
  • Arlanthrene Olive Green B
  • Atic Vat Olive Green B
  • Belanthrene Olive Green B
  • Benzadone Olive Green B
  • BRN 0060973
  • Calcoloid Olive Green BD
  • Calcoloid Olive Green BDC
  • Calcoloid Olive Green BDL
  • Calcoloid Olive Green BN
  • Calcoloid Olive Green BNC
  • Caledon Olive Green B
  • Caledon Printing Olive Green B
  • Carbanthrene Olive Green B
  • Cibanone Olive B
  • Cibanone Olive 2B
  • Cibanone Olive 2BD
  • Cibanone Olive FB
  • EINECS 221-897-7
  • Fenanthren Olive Green B
  • Helanthrene Olive Green B
  • Indanthren Olive Green B
  • Indanthrene Olive Green B
  • Indanthrene Olive Green BA
  • Mayvat Olive Green B
  • Mikethrene Olive Green B
  • Nihonthrene Olive Green B
  • Nyanthrene Olive Green B
  • Ostanthren Olive Green B
  • Palanthrene Olive Green B
  • Pernithrene Olive Green B
  • Ponsol Green 2BL
  • Ponsol Green 2BLD
  • Romanthrene Olive Green FB
  • Sandothrene Olive N 2B
  • Solanthrene Dark Green F-J
  • Solanthrene Dark Green J
  • Tinon Olive B
  • Tyrian Olive Green I-B
  • Vat Green 3
  • Vat Olive Green B
  • Zelen kypova 3
  • Zelen olivova ostanthrenova B
  • 1328-45-6

Applications:

Separation of Anthra[2,1,9-mna]naphth[2,3-h]acridine-5,10,15(16H)-trione on Newcrom R1 HPLC column

February 16, 2018
Separation of Anthra[2,1,9-mna]naphth[2,3-h]acridine-5,10,15(16H)-trione on Newcrom C18 HPLC column

Anthra[2,1,9-mna]naphth[2,3-h]acridine-5,10,15(16H)-trione can be analyzed by this reverse phase (RP) HPLC method with simple conditions. The mobile phase contains an acetonitrile (MeCN), water, and phosphoric acid. For Mass-Spec (MS) compatible applications the phosphoric acid needs to be replaced with formic acid. Smaller 3 µm particles columns available for fast UPLC applications. This liquid chromatography method is scalable and can be used for isolation impurities in preparative separation. It also suitable for pharmacokinetics.

Application Column

Newcrom R1

The Newcrom columns are a family of reverse-phase-based columns. Newcrom A, AH, B, and BH are all mixed-mode columns with either positive or negative ion-pairing groups attached to either short (25 Å) or long (100 Å) ligand chains. Newcrom R1 is a special reverse-phase column with low silanol activity.

Select options
Application Analytes:
Anthra[2,1,9-mna]naphth[2,3-h]acridine-5,10,15(16H)-trione
The result was obtained by a proprietary SIELC algorithm. It may deviate from the actual experimental data. The experimental data are available upon request. Contact us before ordering the column as there may be a more suitable column alternative by either e-mail: support@sielc.com or by phone: 847-229-2629.
