C.I. Pigment Orange 5

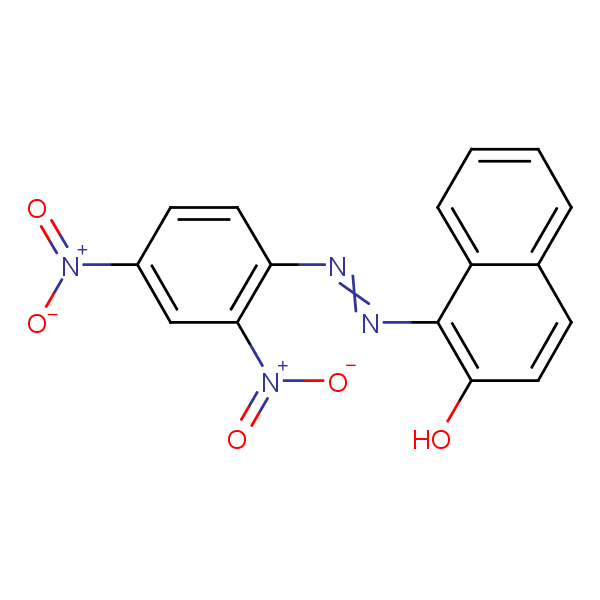

C.I. Pigment Orange 5 structural formula

CAS Number3468-63-1
Molecular FormulaC16H10N4O5
Molecular Weight338.279
InChI KeyHBHZKFOUIUMKHV-ISLYRVAYSA-N
LogP4.15
Synonyms
  • C.I. Pigment Orange 5
  • 1-[(E)-(2,4-Dinitrophenyl)diazenyl]naphthalen-2-ol
  • 2-Naphthalenol, 1-[(E)-2-(2,4-dinitrophenyl)diazenyl]-
  • 3468-63-1
  • 2-Naphthalenol, 1-[(2,4-dinitrophenyl)azo]-
  • D&C Orange No. 17
  • D & C Orange No. 17
  • D and C Orange No. 17
  • D&C Orange 17
  • 11048 Orange
  • Brilliant tangerine 13030
  • BRN 0964718
  • Calcotone Orange 2R
  • Carnelio Red 2G
  • Chromatex Orange R
  • Dainichi Permanent Red GG
  • Dinitraniline Orange
  • Dinitroaniline Orange
  • Dinitroaniline Orange ND-204
  • EINECS 222-429-4
  • Fastona Red 2G
  • Graphtol Red 2GL
  • Hansa Orange RN
  • Helio Fast Orange 3RN
  • Helio Fast Orange 3RT
  • Helio Fast Orange RN
  • Helio Fast Orange RT
  • Irgalite Fast Red 2GL
  • Irgalite Red 2G
  • Irgalite Red 2GW
  • Irgalite Red PV8
  • Isol Fast Red 2G
  • Lake Red 2GL
  • Light Orange R
  • Lutetia Fast Orange R
  • Monolite Fast Orange 2R
  • Monolite Fast Paper Orange 2R
  • Monolite Fast Red 2G
  • Nippon Orange X-881
  • NSC 15975
  • Oralith Red 2GL
  • Orange No. 203
  • Orange pigment X
  • Permanent Orange DN Toner
  • Permanent Orange GG
  • Permanent Orange HD
  • Permanent Orange Toner RA-5650
  • Permanent Red GG
  • Permansa Orange
  • Permaton Orange XL 45-3015
  • Permatone Orange
  • Pigment Fast Orange
  • Pigment Orange 5
  • Segnale Light Orange RN
  • Segnale Light Orange RNG
  • Siegle Orange 2S
  • Signal Orange Y-17
  • Signal Orange Orange Y-17
  • Silopol Orange R
  • Silosol Orange RN
  • Siloton Orange RL
  • Syton Fast Red 2G
  • Tertropigment Orange LRN
  • Tertropigment Red P2G
  • Versal Orange RNL
  • UNII-E27LT0986O

Applications:

Separation of C.I. Pigment Orange 5 on Newcrom R1 HPLC column

February 16, 2018
Separation of C.I. Pigment Orange 5 on Newcrom C18 HPLC column

C.I. Pigment Orange 5 can be analyzed by this reverse phase (RP) HPLC method with simple conditions. The mobile phase contains an acetonitrile (MeCN), water, and phosphoric acid. For Mass-Spec (MS) compatible applications the phosphoric acid needs to be replaced with formic acid. Smaller 3 µm particles columns available for fast UPLC applications. This liquid chromatography method is scalable and can be used for isolation impurities in preparative separation. It also suitable for pharmacokinetics.

Application Column

Newcrom R1

The Newcrom columns are a family of reverse-phase-based columns. Newcrom A, AH, B, and BH are all mixed-mode columns with either positive or negative ion-pairing groups attached to either short (25 Å) or long (100 Å) ligand chains. Newcrom R1 is a special reverse-phase column with low silanol activity.

Select options
Application Analytes:
C.I. Pigment Orange 5
The result was obtained by a proprietary SIELC algorithm. It may deviate from the actual experimental data. The experimental data are available upon request. Contact us by e-mail: support@sielc.com or by phone: 847-229-2629.
