Juglone

Juglone structural formula

CAS Number481-39-0
Molecular FormulaC10H6O3
Molecular Weight174.155
InChI KeyKQPYUDDGWXQXHS-UHFFFAOYSA-N
LogP1.92
Synonyms
  • Juglone
  • 5-Hydroxynaphthalene-1,4-dione
  • 1,4-Naphthalenedione, 5-hydroxy-
  • 481-39-0
  • 5-Hydroxy-1,4-naphthoquinone
  • 1,4-Dihydro-1,4-dioxo-5-hydroxynaphthalene
  • C.I. 75500
  • Walnut Extract
  • 4-08-00-02368
  • 1,4-Naphthalenedione, 5-hydroxy-
  • 1,4-Naphthoquinone, 5-hydroxy-
  • 5-hidroxi-1,4-naftoquinona
  • 5-Hydroxy-1,4-naphthalenedione
  • 5-Hydroxy-1,4-naphthochinon
  • 5-Hydroxy-1,4-naphtoquinone
  • 5-Hydroxynaphthoquinone
  • 8-Hydroxy-1,4-naphthoquinone
  • C.I. Natural Brown 7
  • Natural Brown 7
  • NSC 153189
  • NSC 34266
  • NSC 622948
  • Regianin
  • BRN 1909764
  • Caswell No. 515AA
  • EINECS 207-567-5
  • 5-Hydroxy-1,4-naphthosemiquinone
  • 1,4-Naphthoquinone, 8-hydroxy-
  • 5-Hydroxy-1,4-naftochinon
  • UNII-W6Q80SK9L6

Applications:

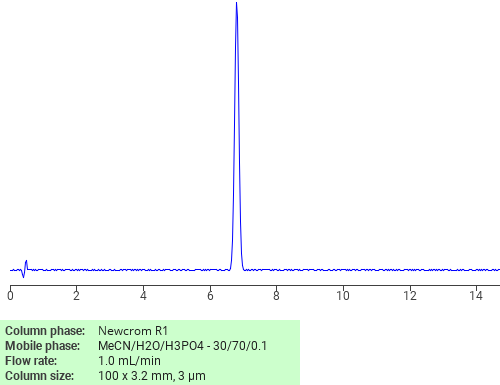

Separation of Juglone on Newcrom R1 HPLC column

February 16, 2018
Separation of Juglone on Newcrom C18 HPLC column

Juglone can be analyzed by this reverse phase (RP) HPLC method with simple conditions. The mobile phase contains an acetonitrile (MeCN), water, and phosphoric acid. For Mass-Spec (MS) compatible applications the phosphoric acid needs to be replaced with formic acid. Smaller 3 µm particles columns available for fast UPLC applications. This liquid chromatography method is scalable and can be used for isolation impurities in preparative separation. It also suitable for pharmacokinetics.

Application Column

Newcrom R1

The Newcrom columns are a family of reverse-phase-based columns. Newcrom A, AH, B, and BH are all mixed-mode columns with either positive or negative ion-pairing groups attached to either short (25 Å) or long (100 Å) ligand chains. Newcrom R1 is a special reverse-phase column with low silanol activity.

Select options
Application Analytes:
Juglone
The result was obtained by a proprietary SIELC algorithm. It may deviate from the actual experimental data. The experimental data are available upon request. Contact us by e-mail: support@sielc.com or by phone: 847-229-2629.
